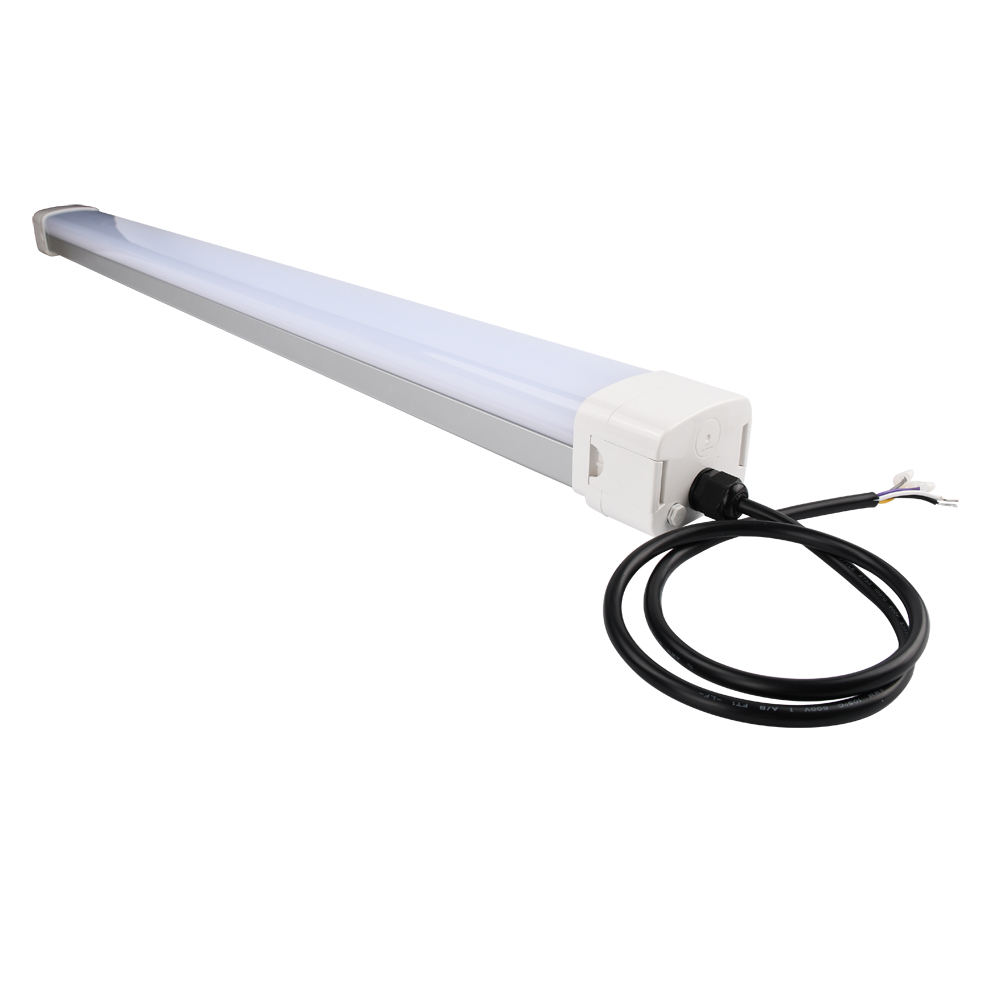

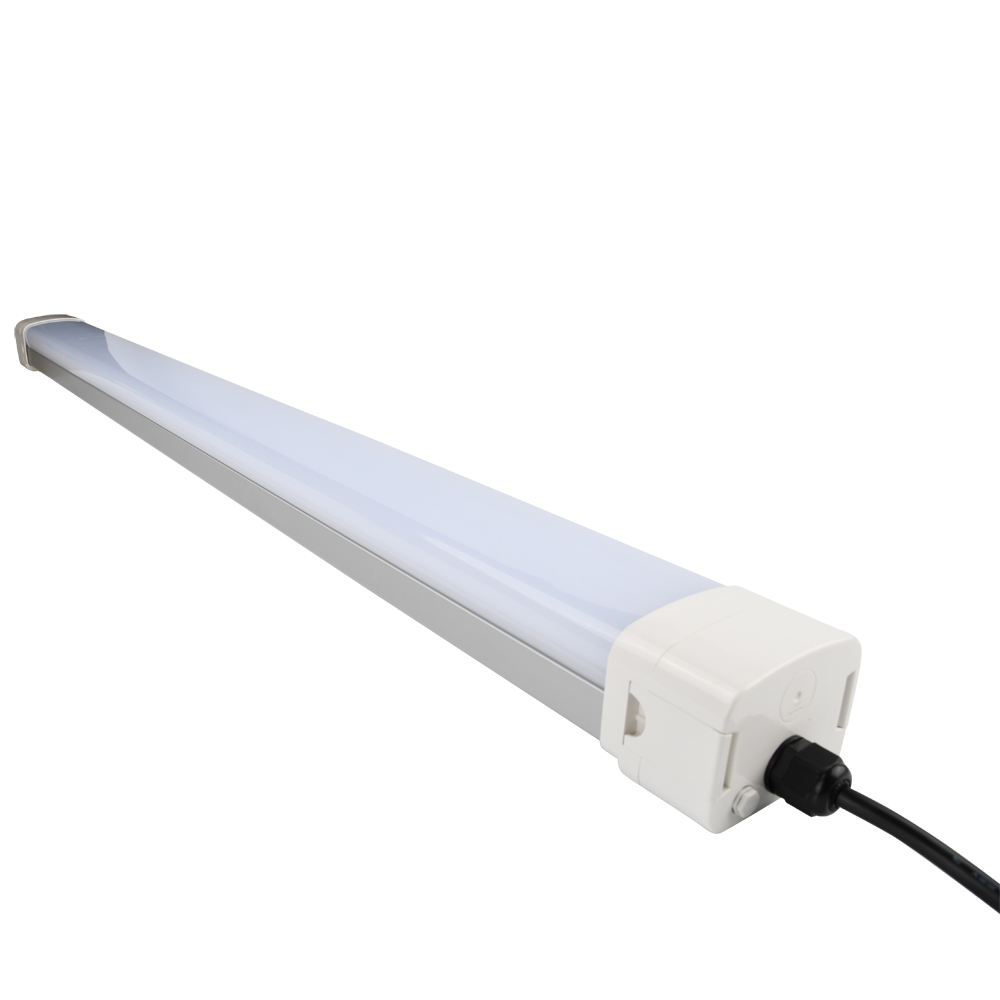

100-277V 40W DLC LED Linkable Fixture CE RoHs Certification LED Linkable Triproof Light

Applications
1. Food Processing 2. Facilities Warehouses
3. Parking Garages 4. Wet Environments
5. Walkway Canopies 6. Harsh Environments
7. Hospitals 8. School
9. Gymnasiums 10. Recreation Centers                             Welcome to SunPZone Led Lighting
Specification
 Features

* More energy saving: ours 150LM/W 40W=Others' 100LM/W 60W* Engraved LOGO is helpful to improve your brand identification
* Emergency backup battery is available

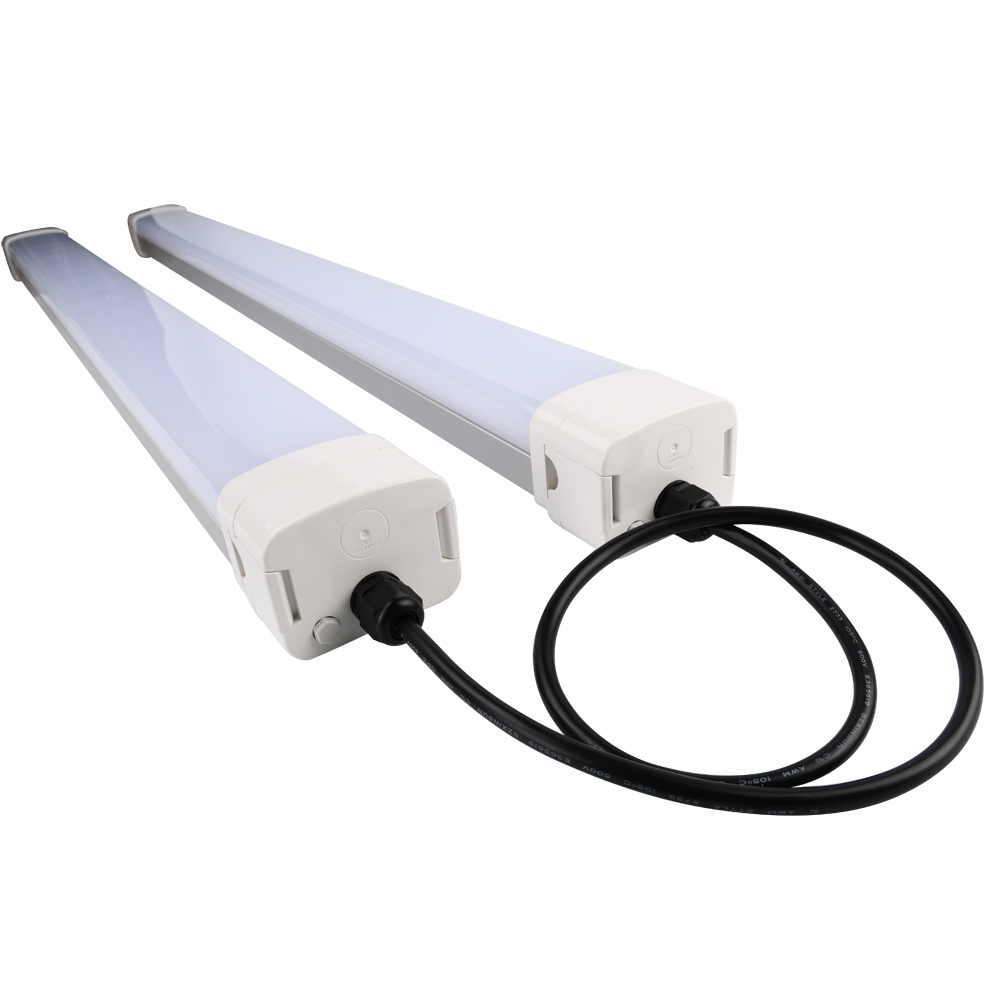

* Linkable with double ended connectors
* IP65, IK10 and ETL listed
* Suitable for wet location
* ETL& Premium DLC 120-140lm/w;5years warranty; UGR less than 20
* 0-10V dimmable is available. Compatible with DALI Dimmer
* IP65; 100-277V; 347V is available. Waterproof, Dustproof, Moistureproof
* Over 60% energy saving compared to fluorescent fixtures
* Excellent thermal conductivity and heat dissipation
* High optical PC cover with 93% transmission. Stainless Steel spec grade clips.
* Life time over to 50,000 hours.
* Multiple mounting option

Specifications

Model	LED	Watt   (W)	Input Voltage	Lumen (Lm)	CRI	PF	Beam Angle	IP Rate	Size            (Inch)
SPZTP230	Epistar	30	100-277V 100-347V	3900	85+	>0.95	160°	IP65	23.6*2.36*3.54
SPZTP440L	Epistar	40	100-277V 100-347V	5400	85+	>0.95	160°	IP65	47.2*2.36*3.54
SPZTP460	Epistar	60	100-277V 100-347V	8400	85+	>0.95	160°	IP65	47.2*2.36*3.54
SPZTP690L	Epistar	90	100-277V 100-347V	11700	85+	>0.95	160°	IP65	70.8*2.36*3.54
SPZTP890	Epistar	90	100-277V 100-347V	11700	85+	>0.95	160°	IP65	94.5*2.36*3.54
SPZTP8120	Epistar	120	100-277V 100-347V	15600	85+	>0.95	160°	IP65	94.5*2.36*3.54

Product Description

       Details* Aluminum housing
* Hard anodic oxide coating, with corrosion protection
* With bridgelux led, initial efficiency 150lm/w
* LED Driver, Efficiency 95%. 5 years warranty

* Low Lumen decay, L70=50,000hours
* Long lifespan 10,000hours
* IK10 & IP66
* Surge protection : 4kv


      Details
* Input cord with male connector. * Maximum series connection power 600W/120VAC* PC covers + Aluminum housing body.
* Translucent white cover or clear cover optional
* Universal voltage 100-277V&100-347V

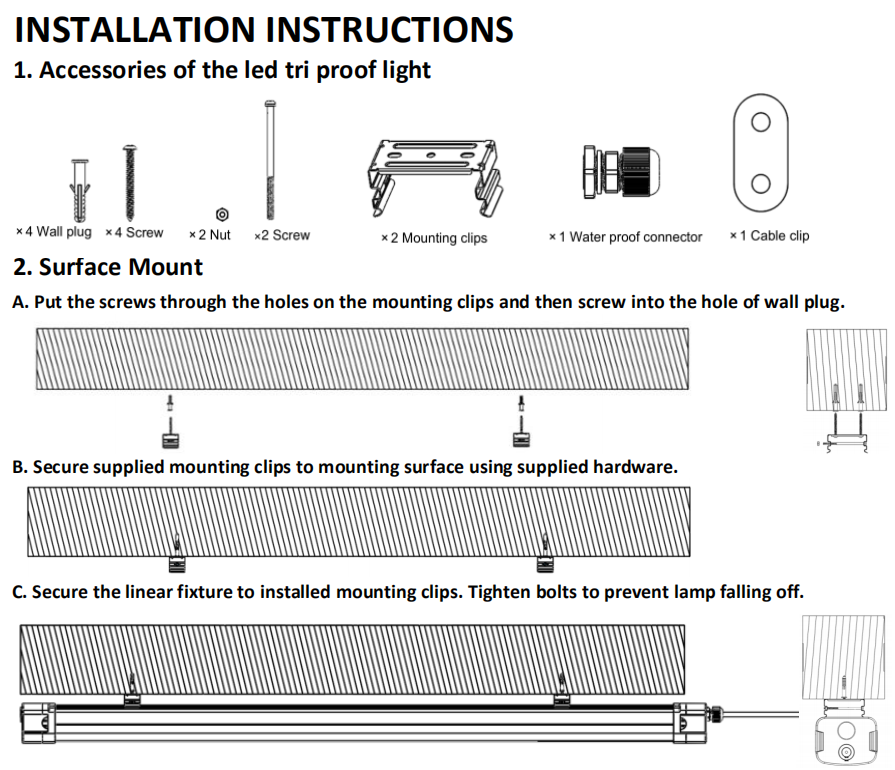

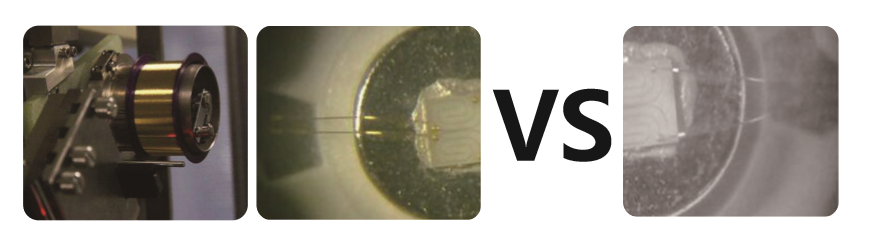

Installation Process Permium 99.99% pure gold wire                                   Normal led chips using alloy wire,copper wire                                                                                                                 silver wire in the market

1. Double gold wire welding technology             VS                 1. Fracture easily

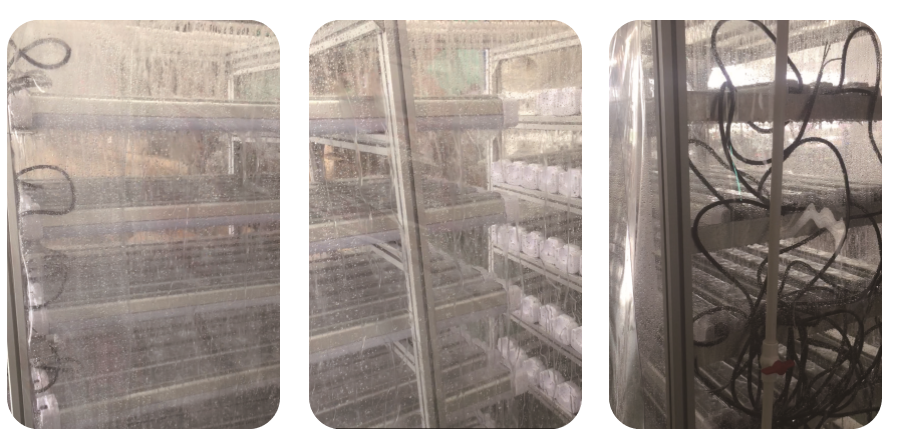

2.Good Conductivity                                              VS                 2. Light failure easily 3. Good welding                                                     VS                  3. Weld insecurity 4. Long life span                                                    VS                  4. High death rate led chip5. Quality assuran                                                 VS                  5. Life span significantly reduced      Waterproof test. 2Hours,2112 Gallon water spray per hour and 250KPa Packing List

Model	Product Size (Inch)	Carton Size  (Inch)	Qty/Carton (PCS)	N.W./Carton(KG)	G.W./Carton(KG)
SPZTP230	31*11*9	31*11*9	6	10.4	12
SPZTP440L	54*11*9	54*11*9	6	17.02	21
SPZTP460	54*11*9	54*11*9	6	17.02	21
SPZTP690L	74*7.9*5.2	74*7.9*5.2	2	8.6	9
SPZTP890	98*7.9*5.2	98*7.9*5.2	2	12.9	13.5
SPZTP8120	98*7.9*9.2	98*7.9*5.2	2	12.9	13.5

Company Information Certifications FAQ

Contact us if you need more details on Led Tri Proof Light. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Ce Led Light、Rohs Led Light. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Commercial & Industrial Lighting > LED Tri-proof Light/Vapor Tight
